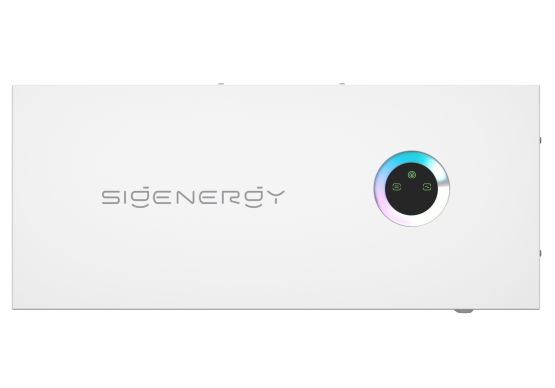

SigenStor EC 15.0 kW TP
NEWS: The Sigen Configurator is now available – Click here to start designing
The SigenStor EC TP is a high-performance hybrid inverter with an integrated battery controller (supporting 1-6 battery modules) and datalogger (supporting WLAN, FE, and RS485). With an optional accessory, it also supports 4G/3G/2G communication.
The system offers a power range of 5.0-30.0kW and up to 98.4% efficiency, it features 2-4 MPPT trackers (model-dependent) and a DC/AC ratio of up to 1.6. Its IP66-rated construction ensures durability in diverse environments, while the smart air cooling system enhances stability and efficiency.
APRILICE
Compatible Battery Modules:
SigenStor BAT 6.0: Supports 1-6 battery module connected to each inverter, can be mixed with other SigenStor BAT
SigenStor BAT 8.0: Supports 1-6 battery module connected to each inverter, can be mixed with other SigenStor BAT
SigenStor BAT 10.0 (9kWh): Supports 1-6 battery module connected to each inverter, can be mixed with other SigenStor BAT
APRILICE
Compatible EV DC Charger Modules:
Sigen EV DC Charging Module 12 kW 7.5m cable: Installing the DC charging module limits the maximum number of battery modules to 5 in each inverter
Sigen EV DC Charging Module 25 kW 7.5m cable: Installing the DC charging module limits the maximum number of battery modules to 5 in each inverter
APRILICE
Compatible Installation Kits:
SigenStor Installation Kit for Ground-mounted (Advanced): Supports Ground-mounted installations
SigenStor Installation Kit for Wall-mounted: Supports Wall-mounted installations with a single inverter only (without batteries)
APRILICE
Compatible Monitors:
Sigen CommMod (4G): Supports 4G/3G/2G communication (SIM-card not included, customer to provide)
APRILICE
Compatible Power Sensors:
Sigen Sensor TP-CT120-DH (Optimal for residential installations)
Sigen Sensor Sub1G Kit (Accessory for the sensor enabling remote communication with the inverter up to 200 m)
Sigen Power Sensor TPE 300A CT DH
Sigen Power Sensor TPE 600A CT DH
APRILICE
Compatible Energy Managers:
Sigenergy Gateway HomePro: Integrated with a Power Sensor, backup functionality, diesel generator control, and energy management (Optimal for residential installations ≤30kW)
| CN Code | 85044084 |
|---|---|
| Packaging Width | 700 |
| Packaging Height | 260 |
| Packaging Length | 300 |
| SKU | 11010015 |
| Weight (kg) | 36.000000 |
| Warranty in Years | 10 |
| Length (mm) | 260 |
| Width (mm) | 700 |
| Height (mm) | 300 |
| Etiket | Type | Størrelse | Download |
|---|---|---|---|
| Brochure-Home Energy Solution | ENG | 4.3 MB | Download | |
| Sigenstor Home Installationsguide 5-30kW | ENG | 8.8 MB | Download | |
| SigenStor EC 5-30 kW Datasheet | ENG | 2 MB | Download | |
| Sigenstor Home operation manual | ENG | 1.5 MB | Download | |
| Sigen Warranty | ENG | 123.7 KB | Download | |
| Sigen application guide Heat Pump to MySigen APP | ENG | 766.5 KB | Download | |
| CheckWatt Sigenergy manual | SWE | 1.3 MB | Download | |
| Technical Note – SigenStor retrofit guide | ENG | 688.6 KB | Download | |
| Sigen Alarm list | ENG | 498.4 KB | Download | |
| Technical Note – How to Set Virtual Battery Allocation on mySigen APP V1.0 | ENG | 243.7 KB | Download | |
| Sigenergy Residential & C&I Product Presentation | ENG | 11.9 MB | Download |
