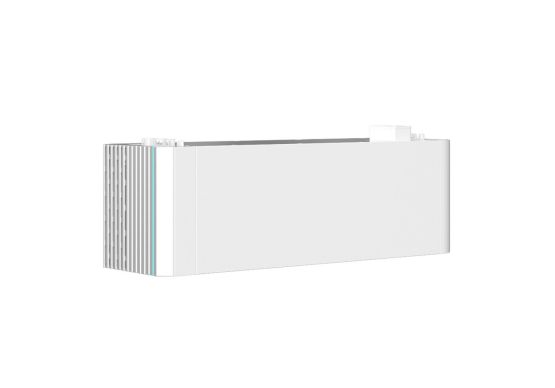

SigenStor BAT 6.0

NEWS: The Sigen Configurator is now available – Click here to start designing

The SigenStor battery is part of the SigenStor 5-in-1 Energy Storage System. Sigenergy’s ESS seamlessly integrates PV inverter, Battery Power Conversion System (PCS), EV DC Charger for electric vehicles, Battery Pack, and Energy Management System (EMS).

The Battery System has a modular and stackable design and can be connected in parallel to meet different capacity needs. It’s compatible with both home and business, off and on-grid scenarios. Capacity is expandable from 8kWh to 1440kWh with  30 connected systems (30 stacks).

APRILICE

Compatible Inverters:

SigenStor EC 6.0 kW TP

SigenStor EC 8.0 kW TP

SigenStor EC 10.0 kW TP

SigenStor EC 12.0 kW TP

SigenStor EC 15.0 kW TP

SigenStor EC 17.0 kW TP

SigenStor EC 20.0 kW TP

SigenStor EC 25.0 kW TP

SigenStor EC 30.0 kW TP

Sigen Hybrid Inverter 8.0kW TP2

Sigen Hybrid Inverter 10.0kW TP2

Sigen Hybrid Inverter 12.0kW TP2

APRILICE

Compatible Battery Modules:

SigenStor BC: Essential control unit for connecting with SigenStor BAT modules

SigenStor BAT 6.0: Supports 1-6 battery module connected to each inverter, can be mixed with other SigenStor BAT

SigenStor BAT 10.0 (9kWh): Supports 1-6 battery module connected to each inverter, can be mixed with other SigenStor BAT

APRILICE

Compatible EV  DC Charger Modules:

Sigen EV DC Charging Module 12 kW 7.5m cable: Installing the DC charging module limits the maximum number of battery modules to 5 in each inverter

Sigen EV DC Charging Module 12 kW 10m cable: Installing the DC charging module limits the maximum number of battery modules to 5 in each inverter

Sigen EV DC Charging Module 25 kW 7.5m cable: Installing the DC charging module limits the maximum number of battery modules to 5 in each inverter

Sigen EV DC Charging Module 25 kW 10m cable: Installing the DC charging module limits the maximum number of battery modules to 5 in each inverter

APRILICE

Compatible Installation Kits:

SigenStor Installation Kit for Ground-mounted (Advanced): Supports Ground-mounted installations

SigenStor Installation Kit for Wall-mounted: Supports Wall-mounted installations with a single inverter only (without batteries)

APRILICE

Compatible Monitors:

Sigen CommMod (4G): Supports 4G/3G/2G communication (SIM-card not included, customer to provide)

APRILICE

Compatible Power Sensors:

Sigen Sensor TP-CT120-DH (Optimal for residential installations)

Sigen Sensor Sub1G Kit (Accessory for the sensor enabling remote communication with the inverter up to 200 m)

APRILICE

Compatible Energy Managers:

Sigenergy Gateway HomePro: Integrated with a Power Sensor, backup functionality, diesel generator control, and energy management (Optimal for residential installations ≤30kW)
