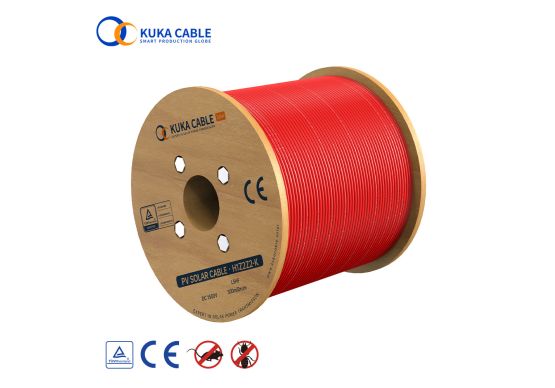

Kuka DC cable 10.00 mm² Red 500m

This high‑performance KUKA H1Z2Z2‑K Solar DC Cable is designed for reliable and long‑term operation in photovoltaic power systems. Manufactured according to EN 50618 and IEC 62930 standards, it ensures excellent electrical performance, durability, and safety in demanding outdoor environments.

The cable features a stranded tinned copper Class 5 conductor combined with cross‑linked polyolefin (XLPO) insulation and jacket, providing outstanding resistance to UV radiation, ozone, moisture, weather exposure, and flame. Its halogen‑free composition ensures compliance with stringent safety requirements, while the anti‑rodent and anti‑termite outer sheath further enhances suitability for challenging installation conditions.

Certified by TÜV Rheinland, this cable is engineered for modern DC applications including solar arrays, string connections, and DC distribution, offering stable performance and extended service life.

Key Features

• Compliant with EN 50618 H1Z2Z2‑K and IEC 62930 photovoltaic cable standards
• Stranded tinned copper Class 5 conductor for flexibility and low resistance
• XLPO insulation and jacket; halogen‑free, flame‑retardant, UV‑resistant, ozone‑resistant, and weather‑resistant
• Anti‑rodent and anti‑termite jacket formulation for enhanced durability in outdoor environments
• Rated for up to 1500 V DC with 6500 VAC test voltage capability
• Wide operating temperature range from –40 °C to +90 °C, with conductor rated up to 120 °C (20,000 h)
• Designed for long‑term use with an expected 30‑year service life
• Certified by TÜV Rheinland (No. 50546675) for quality and compliance
